IPT-D

CAD Libraries

Guides

Specifications

  • Single-lever control
  • 1/4 turn ceramic disk valve cartridge
  • COMFORTFEEL™ lever handle
  • Cold water valve, one inlet
  • Rough-in part required (sold separately)
  • Laminar Ideal Flow®

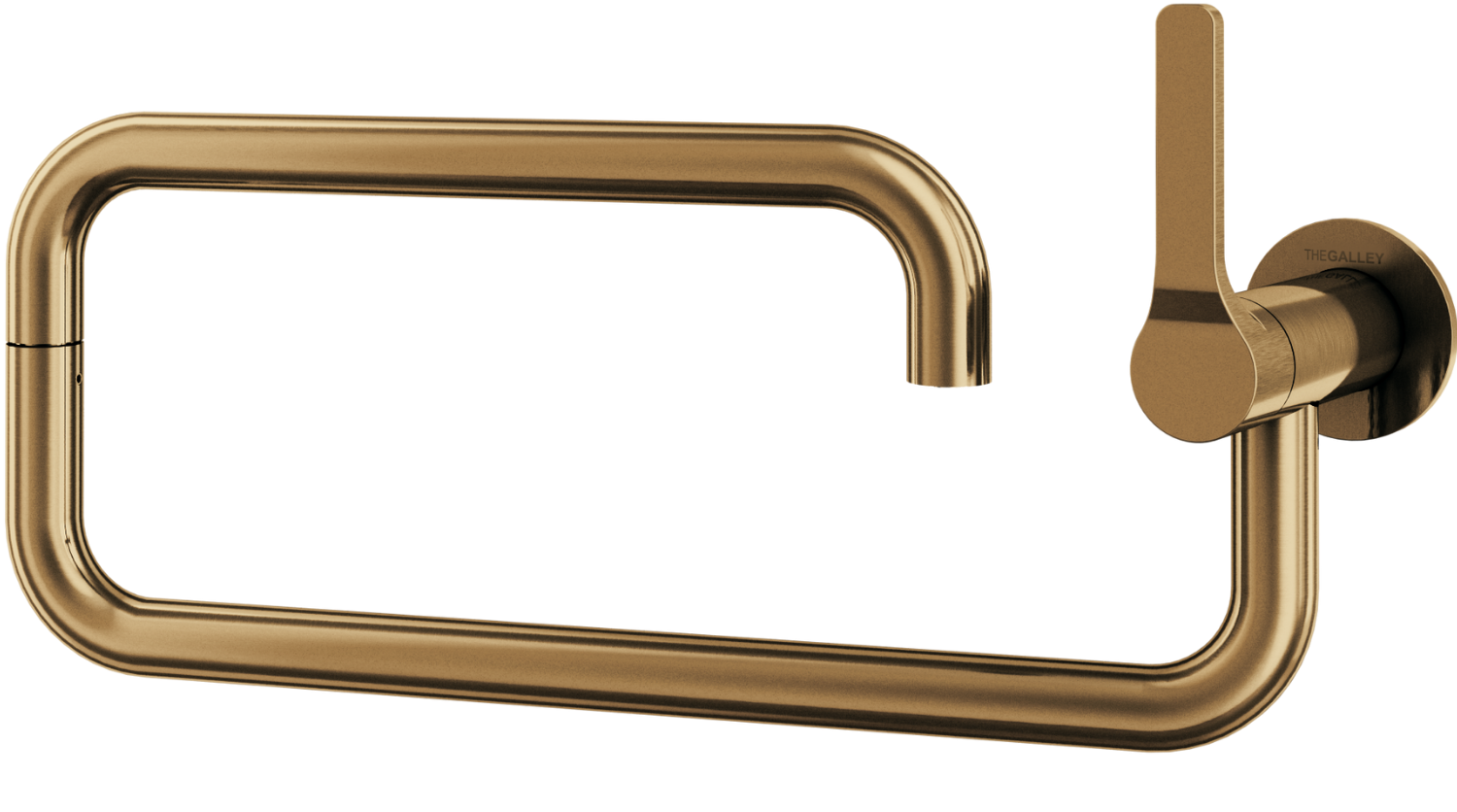

  • Dual swivel spout
  • 24” projection
  • 3.2 GPM*
  • For use with Water Filtration System (included)

*Note: May reduce water flow

**Available with or without Filtration System

Construction

  • Solid 316L ​​machined ​​stainless ​steel ​construction
  • Available in Polished, Matte, PVD Gun Metal Gray™ PVD Satin Black, PVD Brushed Gold, PVD Polished Rose Gold
  • Indoor & outdoor
  • Limited Lifetime Warranty
  • Made in Italy

Materials & Finishes

Polished Stainless Steel
Matte Stainless Steel
PVD Gun Metal Gray™ Stainless Steel
PVD Satin Black Stainless Steel
PVD Brushed Gold Stainless Steel
PVD Polished Rose Gold Stainless Steel

Codes/Standards

Codes/ Standards

  • ASME 112.18.1
  • CSA B125.1
  • NSF 61, 372
  • CAL Green
  • cUPC
  • ADA

Water Filtration System Included

(Pot Filler Taps are also available without Filtration)
  • Service flow rate 2.0 gpm
  • Rated capacity 7,900 gallons
  • Operating pressure 10 – 125 psi
  • Operating temperature 35 – 100°F
  • Overall dimensions 16 7/8” L x 4 1/8” D
  • Quick twist-lock cartridge replacement
  • Internal parts never exposed to human handling
  • Filtration protects capital equipment from early breakdown
  • Installs vertically (allow 2 1/2” clearance)
  • Install in cold water supply only
  • Use with Ideal Tap, BarTap® and Hot & Cold Tap
Water Filtration Specifications
