Ideal Tap®
High Flow (HF) or Eco Flow (EF)
Choose your desired finish
Polished Stainless Steel
Crafted of solid marine-grade 316L stainless steel, this modern and elegant finish is achieved through hand polishing to a matte finishing. This flawless smooth surface is extremely scratch resistant, durable, and very easy to maintain. This noble metal is suitable for outdoor use.
Crafted of solid marine-grade 316L stainless steel, this contemporary and striking finish is achieved through hand polishing to a matte finish and PVD coating. The PVD coating results in a smooth, long lasting finish that has superior characteristics of durability and hardness. This noble metal with PVD coating is suitable for outdoor use.
Crafted of solid marine-grade 316L stainless steel, this industrial and chic finish is achieved through hand polishing to a matte finish and PVD coating. The PVD coating results in a smooth, long lasting finish that has superior characteristics of durability and hardness. This noble metal with PVD coating is suitable for outdoor use.

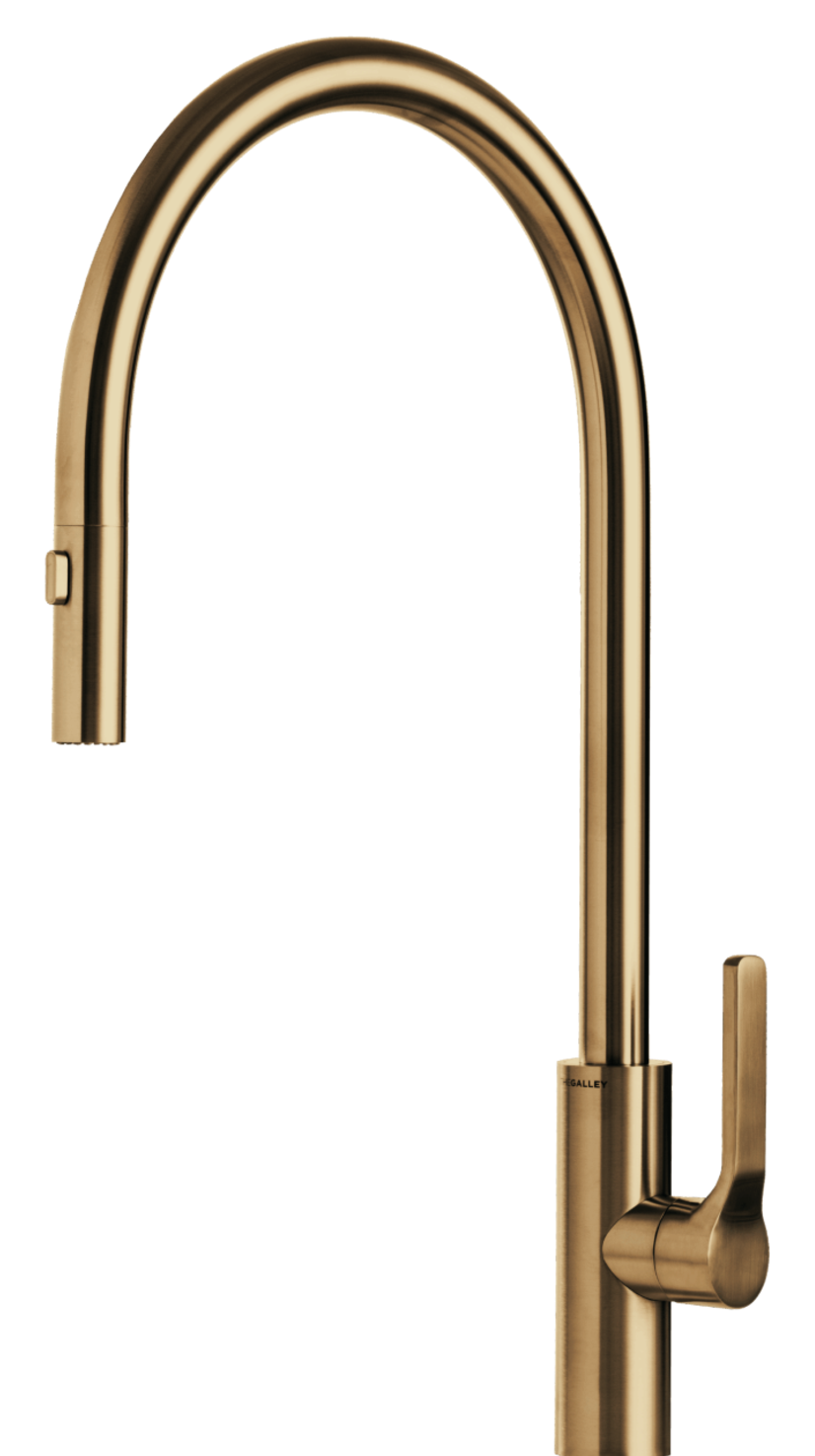

Crafted of solid marine-grade 316L stainless steel, this classic golden jewelry finish is achieved through hand polishing to a matte finish and PVD coating. The PVD coating results in a smooth, long lasting finish that has superior characteristics of durability and hardness. This noble metal with PVD coating is suitable for outdoor use.
Crafted of solid marine-grade 316L stainless steel, this luxurious muted gold jewelry finish is achieved through hand polishing to a brilliant finish and PVD coating. The PVD coating results in a smooth, long lasting finish that has superior characteristics of durability and hardness. This noble metal with PVD coating is suitable for outdoor use.
Specifications
- Single-lever control ceramic disk cartridge
- Forward rotating COMFORTFEEL™ lever handle
- 11” CENTERSTATION™ spout projection
- 11” Pot fill height from deck to spout outlet
- Hand spray extends up to 26” from spout
- Q-Dock™ docking system holds hand spray in place
- Ergonomic slide switch to select Ideal Flow® Laminar or Spray Flow
- Automatic return to laminar flow
- Concealed easy clean spray face
- Spout rotates 360°
- Quiet, smooth gliding hose
- Counterweight
- Dual check valves
- 24” stainless steel flexible hoses 3/8” compression
- Maximum counter thickness 2”
- Minimum install hole diameter 1 3/8”
- Optional base ring included
- Total height 21 1/4”
- High Flow 2.2 GPM maximum flow rate
- Eco Flow 1.8 GPM maximum flow rate
- For use with Water Filtration System**
Faucet Construction
- Solid 316L machined stainless steel construction
- Available in Polished, Matte, PVD Gun Metal Gray™ PVD Satin Black, PVD Brushed Gold, PVD Polished Rose Gold
- Indoor & outdoor
- Limited Lifetime Warranty
- Made in Italy
Code/Standards
- ASME 112.18.1
- CSA B125.1
- NSF 61, 372
- CALGreen
- cUPC
- ADA
Water Filtration System Included
(Taps are also available without Filtration)
- Service flow rate 2.0 gpm
- Rated capacity 7,900 gallons
- Operating pressure 10 – 125 psi
- Operating temperature 35 – 100°F
- Overall dimensions 16 7/8″ x 41/8″
- Reduces lead, chlorine, cysts and other
contaminants - Quick twist-lock cartridge replacement
- Replacement filter cartridge dimensions 14 1/2″ x 3″
- Internal parts never exposed to human handling
- Filtration protects capital equipment from early
breakdown - Installs vertically (allow 2 1/2″ clearance)
- Parts Included: Mounting bracket and screws,
plastic tubing, push-fit Tee
Recommended Tap Accessories
Soap Dispenser
+ Learn More
Deck Switch
+ Learn MoreTechnical Drawings
Watch Installation Video
