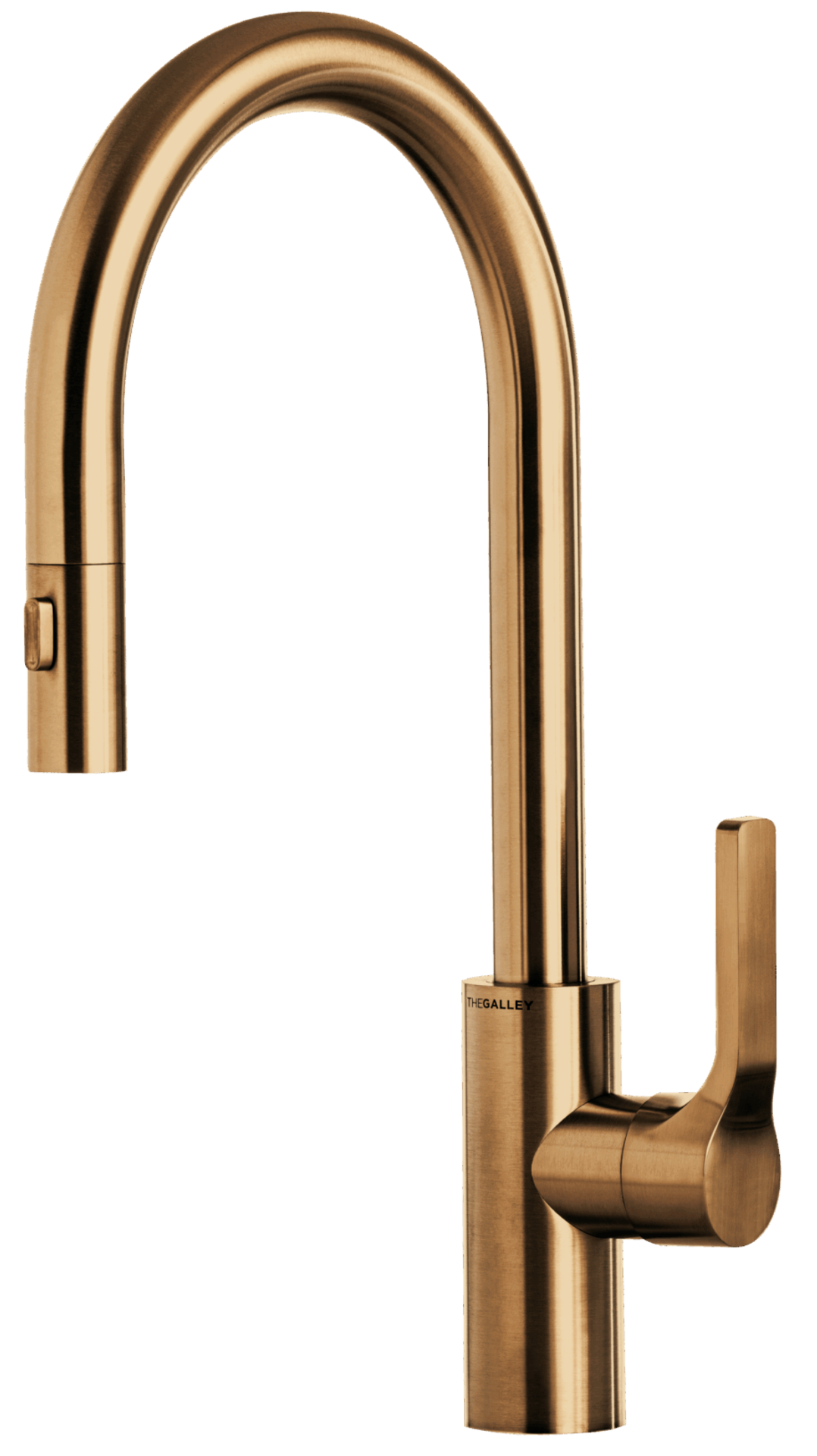

Ideal BarTap®

High Flow (HF) or Eco Flow (EF)

Choose your desired finish

Polished Stainless Steel
Matte Stainless Steel
PVD Gun Metal Gray™ Stainless Steel
PVD Satin Black Stainless Steel
PVD Brushed Gold Stainless Steel
PVD Rose Gold Stainless Steel

Polished Stainless Steel

Crafted of solid marine-grade 316L stainless steel, this timeless and exquisite finish is achieved through hand polishing to a brilliant finish. This flawless smooth surface is extremely scratch resistant, durable, and very easy to maintain. This noble metal is suitable for outdoor use.

Crafted of solid marine-grade 316L stainless steel, this modern and elegant finish is achieved through hand polishing to a matte finishing. This flawless smooth surface is extremely scratch resistant, durable, and very easy to maintain. This noble metal is suitable for outdoor use.

Crafted of solid marine-grade 316L stainless steel, this contemporary and striking finish is achieved through hand polishing to a matte finish and PVD coating. The PVD coating results in a smooth, long lasting finish that has superior characteristics of durability and hardness. This noble metal with PVD coating is suitable for outdoor use.

Crafted of solid marine-grade 316L stainless steel, this industrial and chic finish is achieved through hand polishing to a matte finish and PVD coating. The PVD coating results in a smooth, long lasting finish that has superior characteristics of durability and hardness. This noble metal with PVD coating is suitable for outdoor use.

Crafted of solid marine-grade 316L stainless steel, this classic golden jewelry finish is achieved through hand polishing to a matte finish and PVD coating. The PVD coating results in a smooth, long lasting finish that has superior characteristics of durability and hardness. This noble metal with PVD coating is suitable for outdoor use.

Crafted of solid marine-grade 316L stainless steel, this luxurious muted gold jewelry finish is achieved through hand polishing to a brilliant finish and PVD coating. The PVD coating results in a smooth, long lasting finish that has superior characteristics of durability and hardness. This noble metal with PVD coating is suitable for outdoor use.

Specifications

  • Single-lever control
  • Ceramic disk cartridge
  • Forward rotating COMFORTFEEL™ lever handle
  • Q-Dock™ docking system holds hand spray in place
  • Ergonomic slide switch to select Ideal Flow®
  • Laminar or Spray Flow
  • Automatic return to laminar flow
  • Concealed easy clean spray face
  • Spout rotates 360°
  • Counterweight
  • Dual check valves
  • 24” stainless steel flexible hoses 3/8” compression
  • 1.8 GPM maximum flow rate
  • Maximum counter thickness 2”
  • Minimum install hole diameter 1 3/8”
  • Optional base ring included
  • Total height 15 13/16”
  • High Flow 2.2 GPM* maximum flow rate
  • Eco Flow 1.8 GPM* maximum flow rate
  • For use with Water Filtration System (included)
*Note: May reduce water flow

Faucet Construction

  • Solid 316L ​​machined ​​stainless ​steel ​construction
  • Available in Polished, Matte, PVD Gun Metal Gray™ PVD Satin Black, PVD Brushed Gold, PVD Polished Rose Gold
  • Indoor & outdoor
  • Limited Lifetime Warranty
  • Made in Italy

Code/Standards

  • ASME 112.18.1
  • CSA B125.1
  • NSF 61, 372
  • CALGreen
  • cUPC
  • ADA

Water Filtration System Included

(Taps are also available without Filtration)

  • Service flow rate 2.0 gpm
  • Rated capacity 7,900 gallons
  • Operating pressure 10 – 125 psi
  • Operating temperature 35 – 100°F
  • Overall dimensions 16 7/8” x 41/8”
  • Reduces lead, chlorine, cysts and other contaminants
  • Quick twist-lock cartridge replacement
  • Replacement filter cartridge dimensions 14 1/2” x 3”
  • Internal parts never exposed to human handling
  • Filtration protects capital equipment from early breakdown
  • Installs vertically (allow 2 1/2” clearance)
  • Parts Included: Mounting bracket and screws, plastic tubing, push-fit Tee

Recommended Tap Accessories

Technical Drawings

Click to zoom
Click to zoom
Click to zoom
