Models

Ideal WashStation™ 4S + DryDock® 18

Small | 1-2 Person

Choose your desired Culinary Kit finish

Natural Golden Bamboo

This natural wood material is timeless, versatile, and has a very warm looking golden finish. Crafted from the highest quality Bamboo, we are proud to offer this ¾” thick, eco-friendly finish as one of our most popular material finish options.

Designer White Resin

Our Designer White Resin is the perfect choice when white is the right design choice for your kitchen. This classic, ⅝” thick material is dishwasher safe, indoor and outdoor/UV rated, easy on your knives, and is very easy to maintain.

Exclusive Gray Resin

Our Exclusive Gray Resin is the perfect gray color for so many modern kitchens today. Like the Designer White resin, it is ⅝” thick and not only easy to maintain and dishwasher safe, but is indoor and outdoor/UV rated and gentle on knives.

Graphite Wood Composite

Our matte black Graphite Wood Composite material perfectly complements a contemporary, transitional, or traditional kitchen design and looks wonderful with a wide range of cabinet and countertop colors. This high-performance, dense material is only ½ inch thick, is gentle on your knives, and is easy to clean in the Workstation or in the dishwasher.

American Black Walnut

With its dark and rich hues, this stunning finish is crafted from the finest quality American Black Walnut. As one of our most sought-after material finish options, this ¾” thick eco-friendly wood material adds a touch of warmth and sophistication to any space.

Wash Tools Included

Specifications

  • Single bowl
  • Users: 1
  • Wash Tools included: Four
  • DryDock® Tool included: One
  • Galley Tap recommended: One
  • Outside dimensions: 63 1/2” x 19 1/2” x 2 1/16”
  • Countertop cutout: 62 1/2” x 18”
  • Minimum cabinet size: 66” or 165cm
  • Minimum clearance required for DryDock® below countertop: 2”
  • DryDock® location: Drain side (S)

Construction

  • 16GA 316L stainless steel indoor/outdoor
  • SilentArmor™ sound reduction technology
  • Angel finish
  • Two tier design
  • Star™ groove pattern
  • Reversible side drain
  • Drain cover included
  • Limited Lifetime Warranty
  • Made in the USA
  • ASME A112.19.3/CSA B45.4 certified
  • cUPC™ Certified

Materials & Finishes

Graphite Wood Composite & Graphite Resin

Graphite Wood Composite

  • 1/2” High Performance Material
  • Modern, off-black, matte finish
  • Gentle on knives
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 350°F
  • Eco-friendly
  • Indoor/Outdoor, UV rated
  • Write on with soapstone chalk!

Graphite Resin

Lower Tier Wash Bowl & Lower Tier Wash Caddy

  • Matte black finish
  • Commercial grade
  • Sanitary, BPA-free, non-porous, NSF certified
  • Dishwasher safe
  • Indoor/Outdoor, UV rated
Graphite Wood & Graphite Resin

Graphite Wood Composite

  • 1/2” High Performance Material
  • Modern, off-black, matte finish
  • Gentle on knives
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 350°F
  • Eco-friendly
  • Indoor/Outdoor, UV rated
  • Write on with soapstone chalk!

Graphite Resin

Lower Tier Wash Bowl & Lower Tier Wash Caddy

  • Matte Black finish
  • Commercial grade
  • Sanitary, BPA-free, non-porous, NSF certified
  • Dishwasher safe
  • Indoor/Outdoor, UV rated
Natural Golden Bamboo & Exclusive Gray Resin

Natural Golden Bamboo

  • 3/4” Natural Material
  • Classic natural wood finish
  • Hand-selected Bamboo
  • Gentle on knives
  • Sanitary, dense, non-porous
  • Care for with citrine®
  • Eco-friendly

Exclusive Gray Resin

Lower Tier Wash Bowl & Lower Tier Wash Caddy

  • Transitional Gray finish
  • Commercial grade
  • Sanitary, BPA-free, non-porous, NSF certified
  • Dishwasher safe
  • Indoor/Outdoor, UV rated
Natural Golden Bamboo & Gray Resin

Natural Golden Bamboo

  • 3/4” Natural Material
  • Classic natural wood finish
  • Hand-selected Bamboo
  • Gentle on knives
  • Sanitary, dense, non-porous
  • Care for with citrine®
  • Eco-friendly

Exclusive Gray Resin

Lower Tier Wash Bowl & Lower Tier Wash Caddy

  • Transitional Gray finish
  • Commercial grade
  • Sanitary, BPA-free, Non-porous, NSF certified
  • Dishwasher safe
  • Indoor/Outdoor, UV rated
Designer White Resin
  • 5/8” Material
  • Transitional White finish
  • Gentle on knives
  • Commercial grade
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 212°F
  • Indoor/Outdoor, UV rated
  • Color coded labeling available

Lower Tier Wash Bowl & Lower Tier Wash Caddy

  • Transitional White finish
  • Commercial grade
  • Sanitary, BPA-free, non-porous, NSF certified
  • Dishwasher safe
  • Indoor/Outdoor, UV rated
Exclusive Gray Resin
  • 5/8” Material
  • Transitional Gray finish
  • Gentle on knives
  • Commercial grade
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 212°F
  • Indoor/Outdoor, UV rated
  • Color coded labeling available

Lower Tier Wash Bowl & Lower Tier Wash Caddy

  • Transitional Gray finish
  • Commercial grade
  • Sanitary, BPA-free, non-porous, NSF certified
  • Dishwasher safe
  • Indoor/Outdoor, UV rated

Recommended Basin Accessories

Optional Culinary Tools

Upper Deck®

IWA 4S + DD18 Upper Deck® Set

Three Piece Set

A modular cover system and third-tier workspace available in all four finishes. The sections slide apart for easy removal and each one can be used individually on the countertop tier. Use as a complete set to cover the Workstation or individually as work surfaces.

Available in four finishes

12” Upper Deck® included in Culinary Kit

IWA 4S + DD18 Upper Deck® Set

24” Section

18” Section

12” Section

9” Section

6” Section

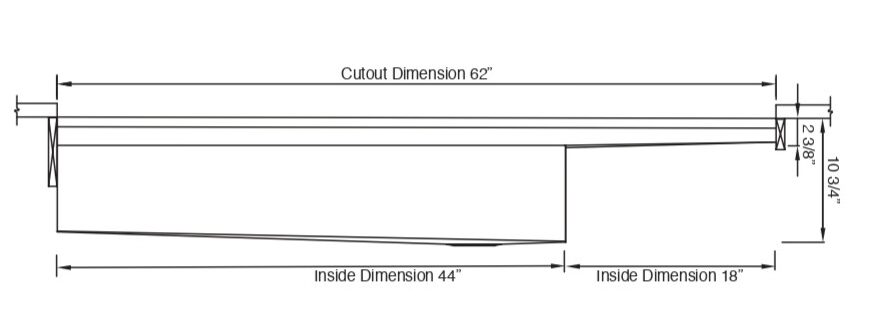

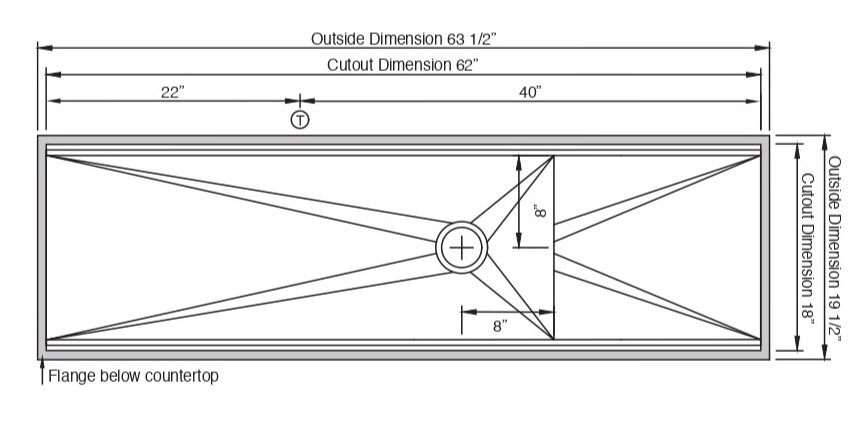

Technical Drawings

Click to zoom
Click to zoom
