Home » Specification Library » 4’X4’ Corner Workstation

IWS-4X4-C

CAD Libraries

Select Option
Select Option Countertop Cutout (DWG) 2D Model (DWG and DXF) 3D AutoCad (DWG and DXF) Wavefront 3D (OBJ) SketchUp (SKP) 2020 Design Catalog Chief Architect 3D Library

Guides

Select Option
Select Option Installation Guide

Specification Sheet

Specification Sheet

Watch Installation Video

Specifications

  • Single bowl
  • Users: 2 (Outside Corner), 1 (Inside Corner)
  • Culinary Tools included: Five
  • Galley Taps recommended: Two (Outside Corner), One (Inside Corner)
  • Outside dimensions: 44” x 44” x 19 1/2” x  10 5/16”
  • Countertop cutout: 42 3/4” x 42 3/4”x 18”
  • Basin area: 42” x 42” x 16”
  • Minimum cabinet size: 48” x 48” or 120cm x 120cm

Construction

  • 16GA 316L stainless steel indoor/outdoor
  • SilentArmor™ sound reduction technology
  • Angel finish
  • Three tier design
  • Star™ groove pattern
  • Side drain
  • Drain cover included
  • Limited Lifetime Warranty
  • Made in the USA
  • ASME A112.19.3/CSA B45.4 certified
  • cUPC™ Certified

Materials & Finishes

American Black Walnut
  • 3/4” Natural Material
  • Classic solid wood finish
  • Hand-selected Walnut
  • Gentle on knives
  • Sanitary, dense, non-porous
  • Care for with citrine®
  • Eco-friendly

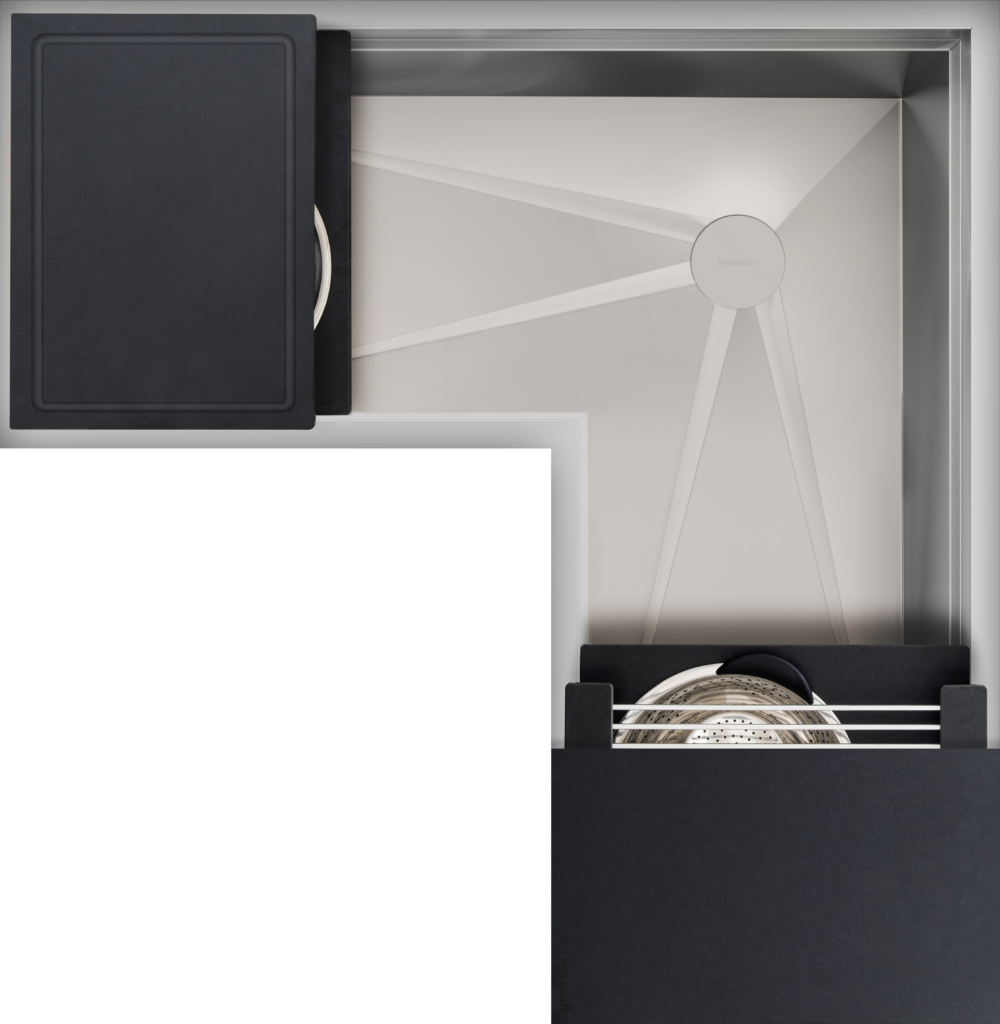

Graphite Wood Composite
  • 1/2” High Performance Material
  • Modern, off-black, matte finish
  • Gentle on knives
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 350°F
  • Eco-friendly
  • Indoor/Outdoor, UV rated
  • Write on with soapstone chalk!
Natural Golden Bamboo
  • 3/4” Natural Material
  • Traditional solid wood finish
  • Hand-selected Bamboo
  • Gentle on knives
  • Sanitary, dense, non-porous
  • Care for with citrine®
  • Eco-friendly
Exclusive Gray Resin
  • 5/8” Material
  • Transitional Gray finish
  • Gentle on knives
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 212°F
  • Indoor/Outdoor, UV rated
  • Color coded labeling available

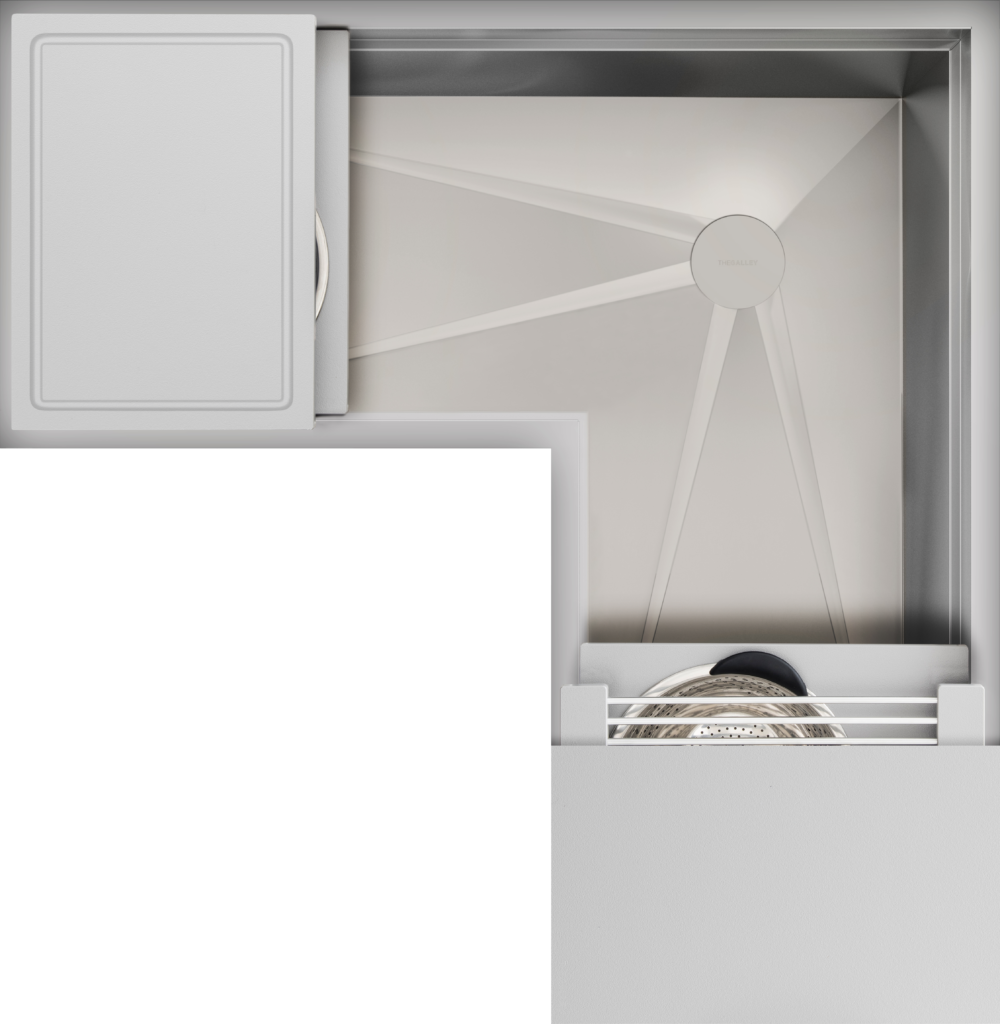

Designer White Resin
  • 5/8” Material
  • Transitional White finish
  • Gentle on knives
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 212°F
  • Indoor/Outdoor, UV rated
  • Color coded labeling available
