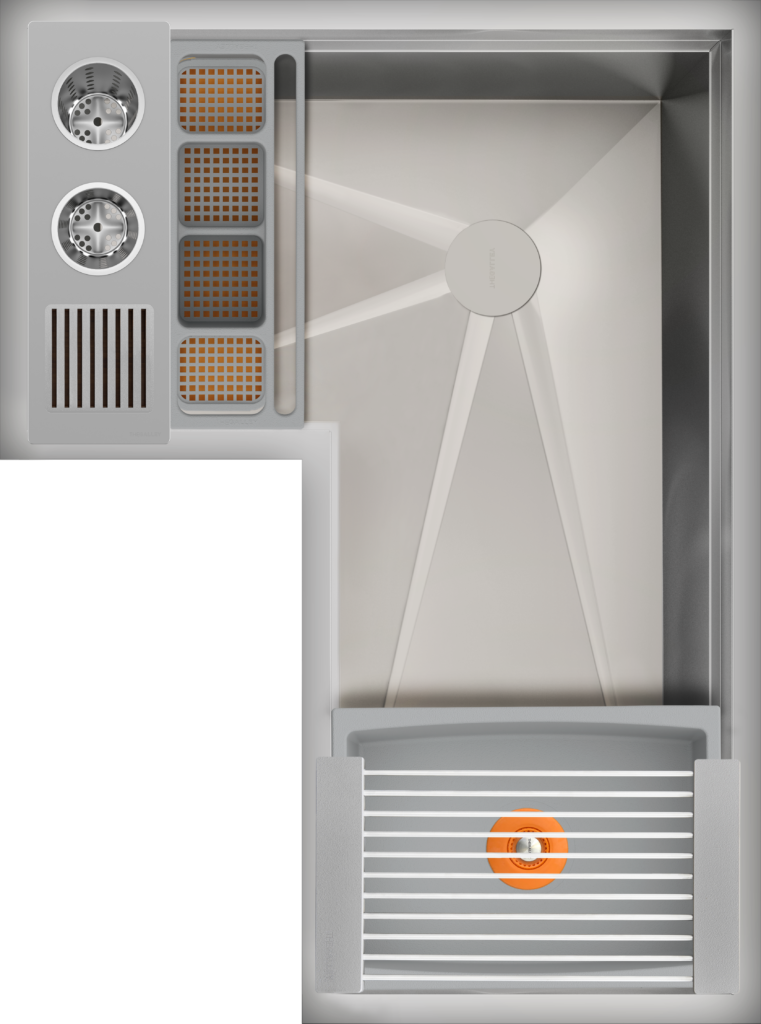

Home » Specification Library » 3’X4’ Corner WashStation™

IWA-3X4-C

CAD Libraries

Select Option

Select Option Countertop Cutout (DWG) 2D Model (DWG and DXF) 3D Inside Install (DWG) 3D Outside Install (DWG) Wavefront 3D (OBJ) SketchUp (SKP) 2020 Design Catalog Chief Architect 3D Library

Guides

Select Option

Select Option Installation Guide

Specification Sheet

Watch Installation Video

Specifications

Single bowl
Users: 2 (Outside Corner), 1 (Inside Corner)
Wash Tools included: Four
Galley Tap recommended: One
Outside dimensions: 32” x 44” x 19 1/2” x 10 5/16”
Countertop cutout: 30 3/4” x 42 3/4” x 18”
Basin area: 30” x 42” x 16”
Minimum cabinet size: 36” x 48” or 90cm x 120cm

Construction

16GA 316L stainless steel indoor/outdoor
SilentArmor™ sound reduction technology
Angel finish
Two tier design
Star™ groove pattern
Side drain
Drain cover included
Limited Lifetime Warranty
Made in the USA
ASME A112.19.3/CSA B45.4 certified
cUPC™ Certified

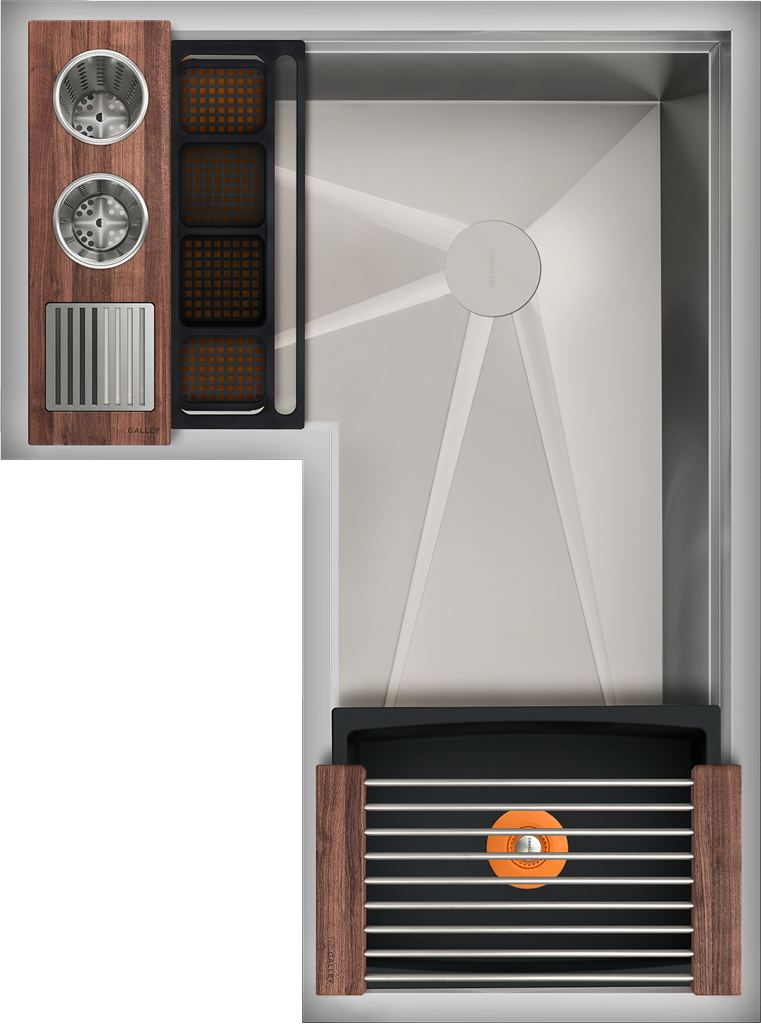

Materials & Finishes

American Black Walnut

3/4" Natural Material
Classic solid wood finish
Hand-selected
Walnut Gentle on knives
Sanitary, dense, non-porous
Care for with citrine_®
Eco-friendly

Graphite Wood Composite & Graphite Resin

Graphite Wood Composite

Upper Tier Drying Rack & Upper Tier Utensil Caddy

1/2” High Performance Material
Modern, off-black, matte finish
Gentle on knives
Sanitary, non-porous, NSF certified
Dishwasher safe
Heat resistant up to 350°F
Eco-friendly
Indoor/Outdoor, UV rated
Write on with soapstone chalk!

Graphite Resin

Lower Tier Wash Bowl & Lower Tier Wash Caddy

Matte black finish
Commercial grade
Sanitary, BPA-free, non-porous, NSF certified
Dishwasher safe
Indoor/Outdoor, UV rated

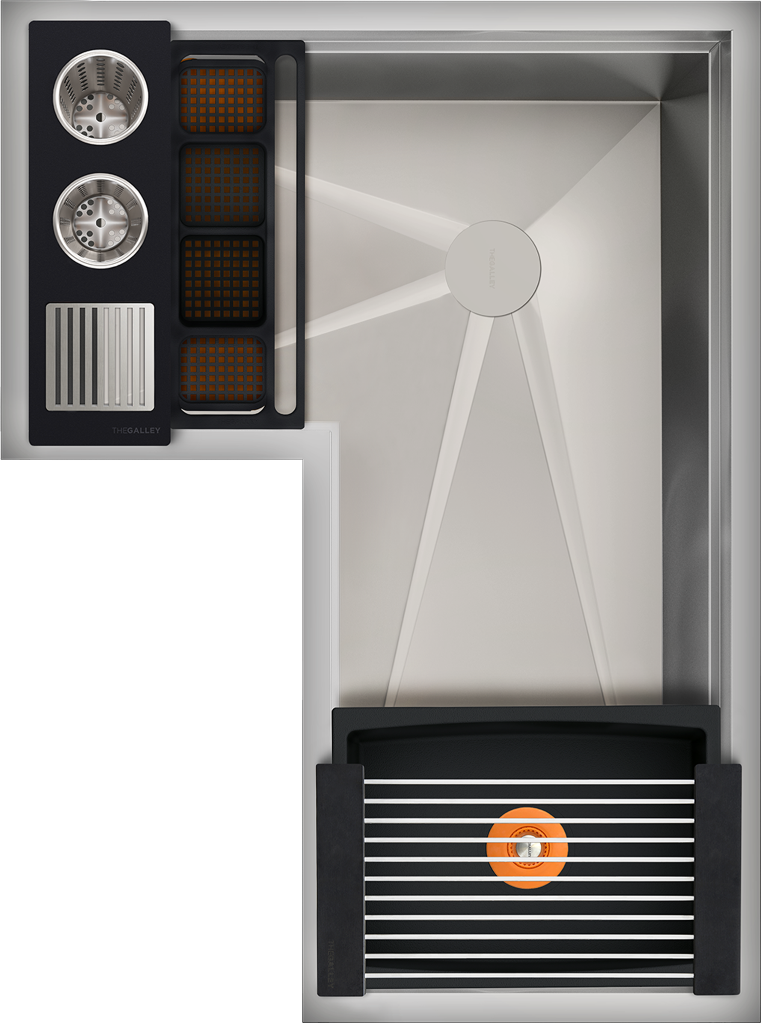

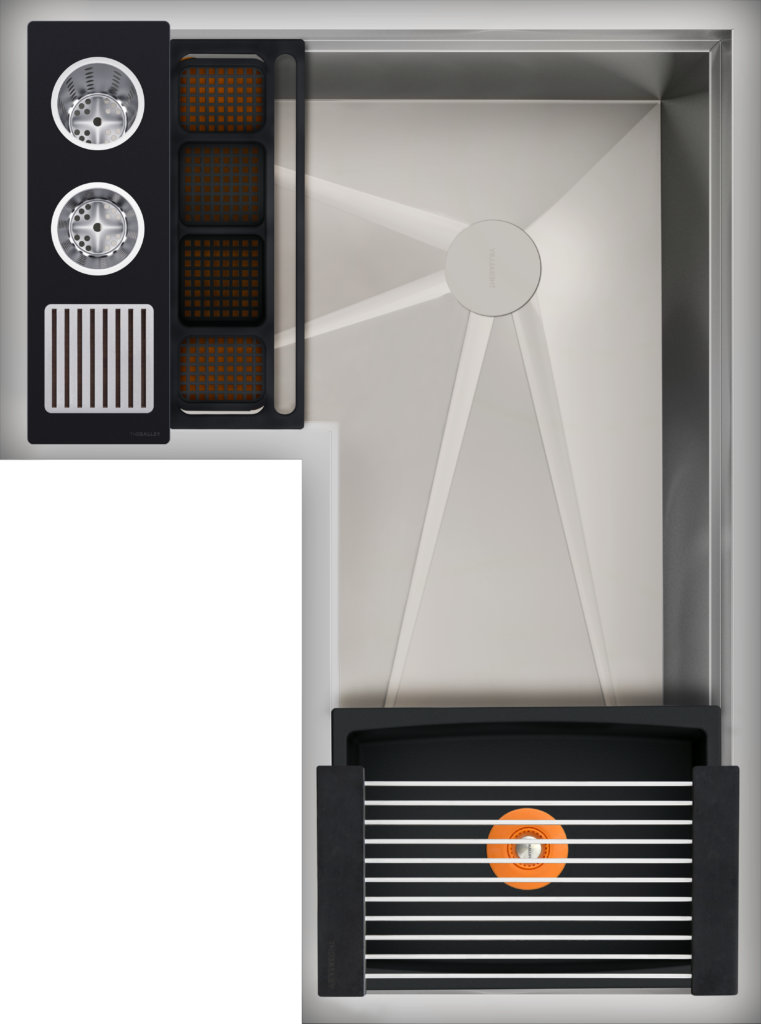

Graphite Wood & Graphite Resin

Graphite Wood Composite

Upper Tier Drying Rack & Upper Tier Utensil Caddy

1/2” High Performance Material
Modern, off-black, matte finish
Gentle on knives
Sanitary, non-porous, NSF certified
Dishwasher safe
Heat resistant up to 350°F
Eco-friendly
Indoor/Outdoor, UV rated
Write on with soapstone chalk!

Graphite Resin

Lower Tier Wash Bowl & Lower Tier Wash Caddy

Matte Black finish
Commercial grade
Sanitary, BPA-free, non-porous, NSF certified
Dishwasher safe
Indoor/Outdoor, UV rated

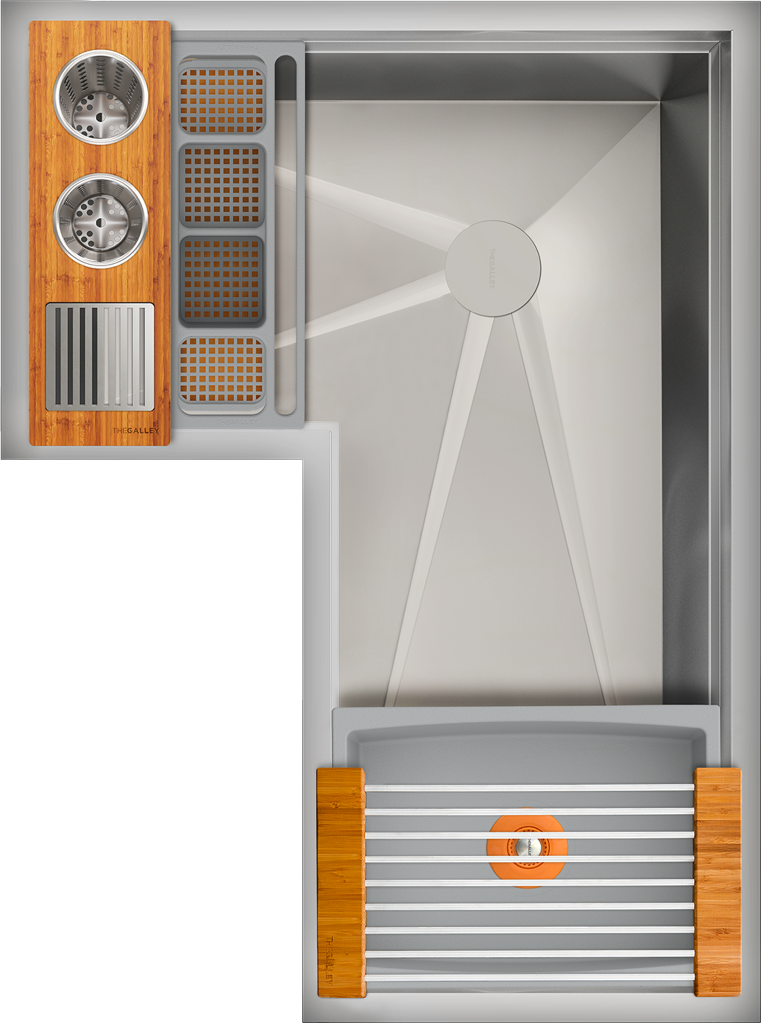

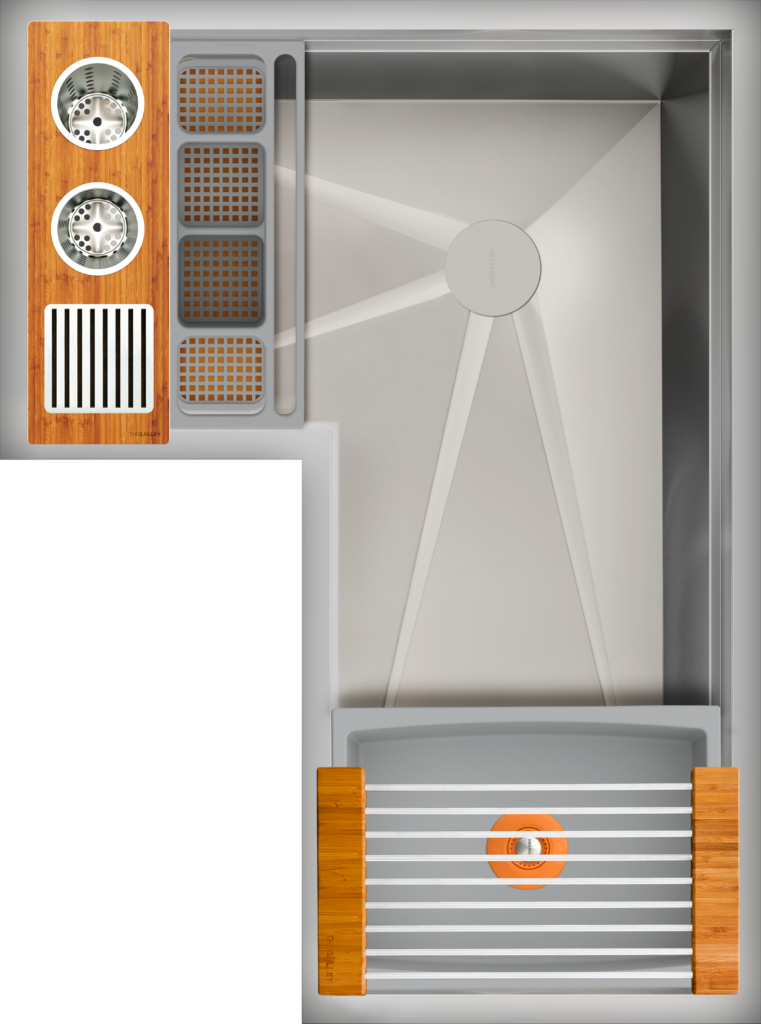

Natural Golden Bamboo & Exclusive Gray Resin

Natural Golden Bamboo

Upper Tier Drying Rack & Upper Tier Utensil Caddy

3/4” Natural Material
Classic natural wood finish
Hand-selected Bamboo
Gentle on knives
Sanitary, dense, non-porous
Care for with citrine_®
Eco-friendly

Exclusive Gray Resin

Lower Tier Wash Bowl & Lower Tier Wash Caddy

Transitional Gray finish
Commercial grade
Sanitary, BPA-free, non-porous, NSF certified
Dishwasher safe
Indoor/Outdoor, UV rated

Natural Golden Bamboo & Gray Resin

Natural Golden Bamboo

Upper Tier Drying Rack & Upper Tier Utensil Caddy

3/4” Natural Material
Classic natural wood finish
Hand-selected Bamboo
Gentle on knives
Sanitary, dense, non-porous
Care for with citrine_®
Eco-friendly

Exclusive Gray Resin

Lower Tier Wash Bowl & Lower Tier Wash Caddy

Transitional Gray finish
Commercial grade
Sanitary, BPA-free, non-porous, NSF certified
Dishwasher safe
Indoor/Outdoor, UV rated

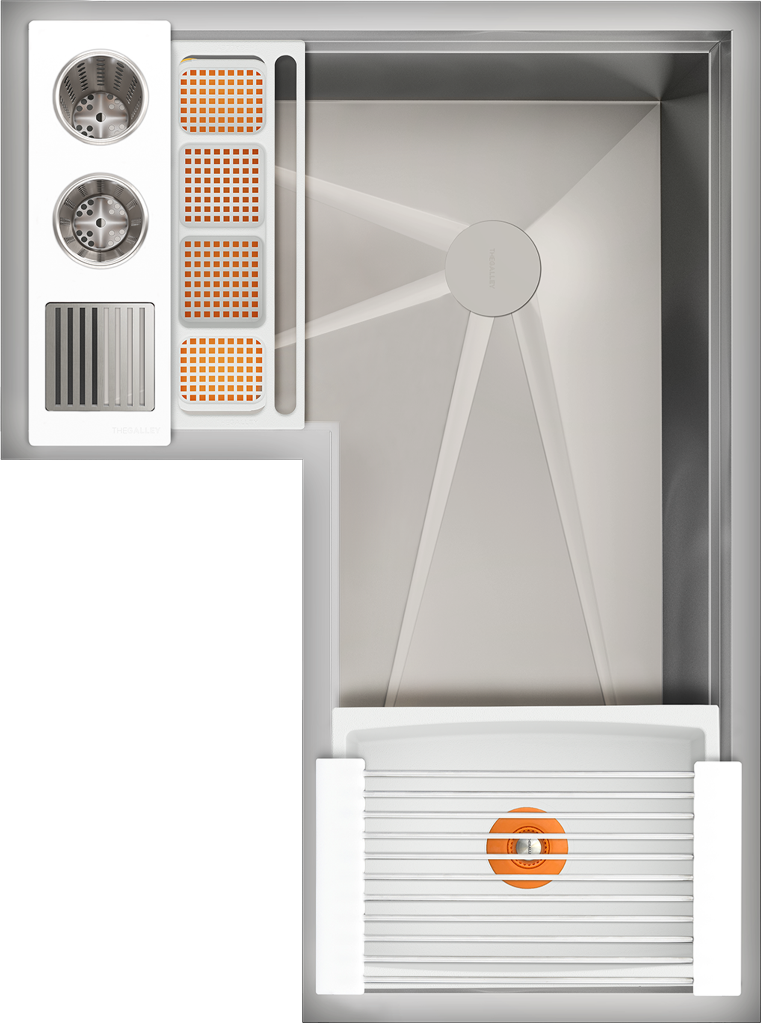

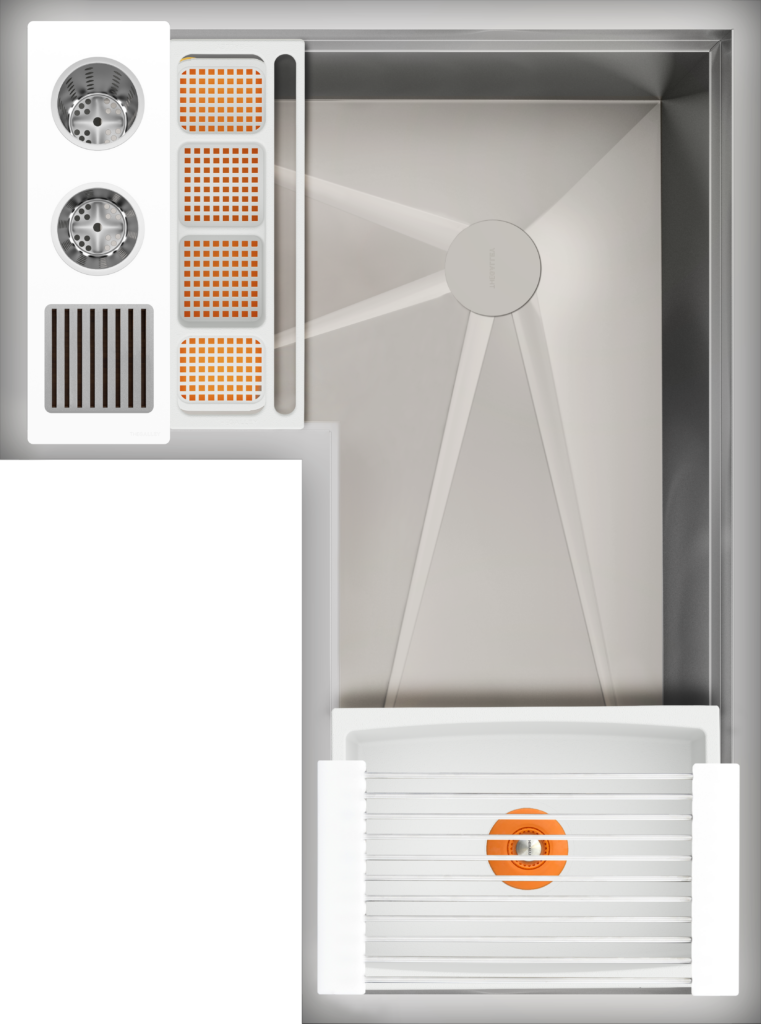

Designer White Resin

Upper Tier Drying Rack & Upper Tier Utensil Caddy

5/8” Material
Transitional White finish
Gentle on knives
Commercial grade
Sanitary, non-porous, NSF certified
Dishwasher safe
Heat resistant up to 212°F
Indoor/Outdoor, UV rated
Color coded labeling available

Lower Tier Wash Bowl & Lower Tier Wash Caddy

Transitional White finish
Commercial grade
Sanitary, BPA-free, non-porous, NSF certified
Dishwasher safe
Indoor/Outdoor, UV rated

Exclusive Gray Resin

Upper Tier Drying Rack & Upper Tier Utensil Caddy

5/8” Material
Transitional Gray finish
Gentle on knives
Commercial grade
Sanitary, non-porous, NSF certified
Dishwasher safe
Heat resistant up to 212°F
Indoor/Outdoor, UV rated
Color coded labeling available

Lower Tier Wash Bowl & Lower Tier Wash Caddy

Transitional Gray finish
Commercial grade
Sanitary, BPA-free, non-porous, NSF certified
Dishwasher safe
Indoor/Outdoor, UV rated
