Specification Library
IWA-3-S-DD-12-S
CAD Libraries
Guides
Select Option
Specifications
- Single bowl
- Users: 1
- Wash Tools included: Four
- DryDock® Tool included: One
- Galley Tap recommended: One
- Outside dimensions: 45 1/2” x 19 1/2” x 2 1/16”
- Countertop cutout: 44 1/2” x 18”
- Minimum cabinet size: 48” or 120cm
- Minimum clearance required for DryDock® below countertop: 2”
- DryDock® location: Drain side (S)
Construction
- 16GA 316L stainless steel indoor/outdoor
- SilentArmor™ sound reduction technology
- Angel finish
- Three tier design
- Star™ groove pattern
- Reversible side drain
- Drain cover included
- Limited Lifetime Warranty
- Made in the USA
- ASME A112.19.3/CSA B45.4 certified
- cUPC™ Certified
Materials & Finishes
American Black Walnut / Graphite Resin+
American Black Walnut
Upper Tier Drying Rack & Utensil Caddy
- 3/4” Natural Material
- Classic solid wood finish
- Hand-selected Walnut
- Gentle on knives
- Sanitary, dense, non-porous
- Care for with citrine®
- Eco-friendly
Graphite Resin+
Lower Tier Wash Bowl & Wash Caddy
- Matte black finish
- BPA/BPS-free
- NSF certified
- Dishwasher safe
- Shatter resistant
- Sanitary, non-porous
- Heat & chemical resistant
- Indoor/Outdoor, UV rated

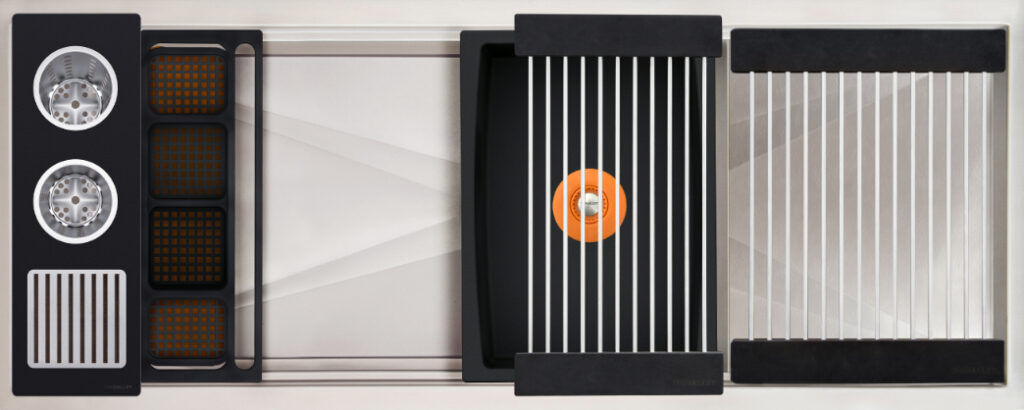

Graphite Wood Composite / Graphite Resin+
Graphite Wood Composite
Upper Tier Drying Rack & Utensil Caddy
- 1/2” High Performance Material
- Modern, off-black, matte finish
- Gentle on knives
- Sanitary, non-porous, NSF certified
- Dishwasher safe
- Heat resistant up to 350°F
- Eco-friendly
- Indoor/Outdoor, UV rated
- Write on with soapstone chalk!
Graphite Resin+
Lower Tier Wash Bowl & Wash Caddy
- Matte black finish
- BPA/BPS-free
- NSF certified
- Dishwasher safe
- Shatter resistant
- Sanitary, non-porous
- Heat & chemical resistant
- Indoor/Outdoor, UV rated

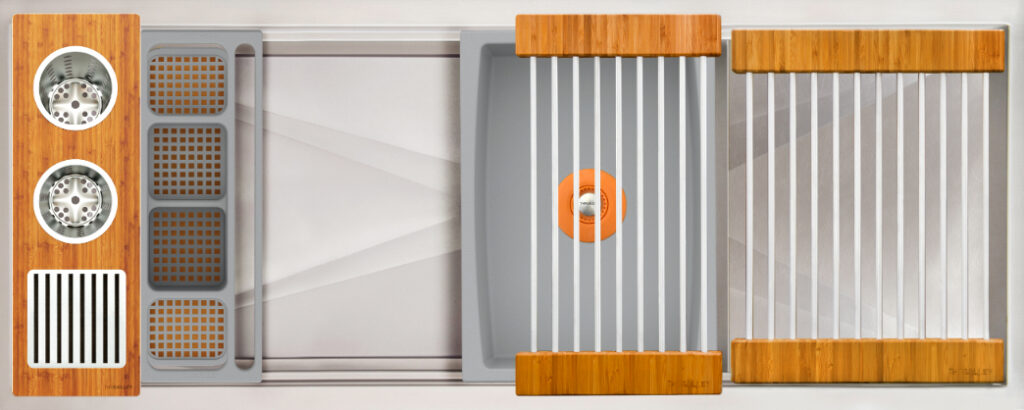

Natural Golden Bamboo / Exclusive Gray Resin+
Natural Golden Bamboo
Upper Tier Drying Rack & Utensil Caddy
- 3/4” Natural Material
- Traditional solid wood finish
- Hand-selected Bamboo
- Gentle on knives
- Sanitary, dense, non-porous
- Care for with citrine®
- Eco-friendly
Exclusive Gray Resin+
Lower Tier Wash Bowl & Wash Caddy
- Transitional Gray finish
- BPA/BPS-free
- NSF certified
- Dishwasher safe
- Shatter resistant
- Sanitary, non-porous
- Heat & chemical resistant
- Indoor/Outdoor, UV rated

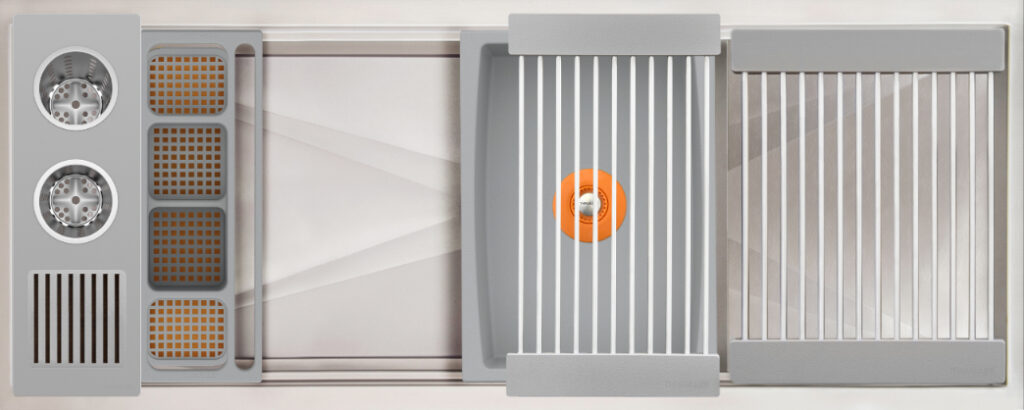

Exclusive Gray Resin / Resin+
Exclusive Gray Resin
Upper Tier Drying Rack & Utensil Caddy
- 5/8” Material
- Transitional Gray finish
- Gentle on knives
- Sanitary, non-porous, NSF certified
- Dishwasher safe
- Heat resistant up to 212°F
- Indoor/Outdoor, UV rated
- Color coded labeling available
Exclusive Gray Resin+
Lower Tier Wash Bowl & Wash Caddy
- Transitional Gray finish
- BPA/BPS-free
- NSF certified
- Dishwasher safe
- Shatter resistant
- Sanitary, non-porous
- Heat & chemical resistant
- Indoor/Outdoor, UV rated

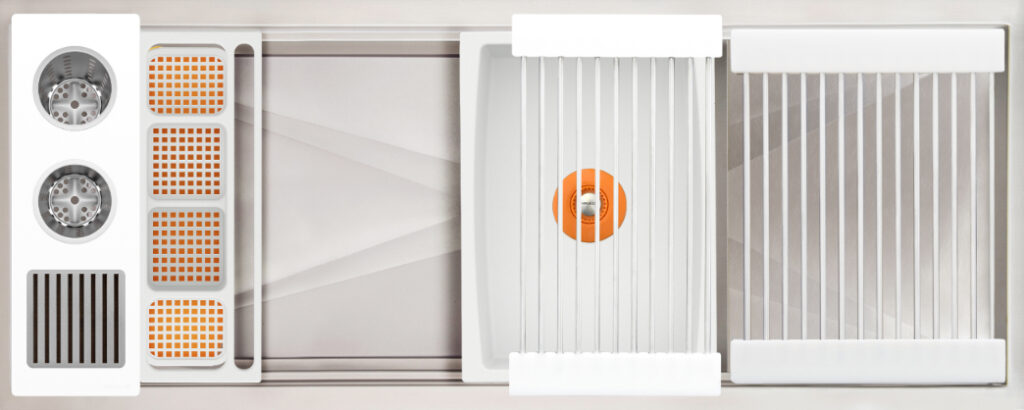

Designer White Resin / Resin+
Designer White Resin
Upper Tier Drying Rack & Utensil Caddy
- 5/8” Material
- Transitional White finish
- Gentle on knives
- Sanitary, non-porous, NSF certified
- Dishwasher safe
- Heat resistant up to 212°F
- Indoor/Outdoor, UV rated
- Color coded labeling available
Designer White Resin+
Lower Tier Wash Bowl & Wash Caddy
- Transitional White finish
- BPA/BPS-free
- NSF certified
- Dishwasher safe
- Shatter resistant
- Sanitary, non-porous
- Heat & chemical resistant
- Indoor/Outdoor, UV rated
