Home » Specification Library » 2.5’ Workstation + 12’’ DryDock®

IWS-30-S-DD-12-S

CAD Libraries

Select Option
Select Option Countertop Cutout (DWG) 2D Model (DWG and DXF) 3D AutoCad (DWG and DXF) Wavefront 3D (OBJ) SketchUp (SKP) 2020 Design Catalog Chief Architect 3D Library

Guides

Select Option
Select Option Installation Guide

Specification Sheet

Specification Sheet

Watch Installation Video

CAD Libraries

Select Option
Select Option Countertop Cutout (DWG) 2D Model (DWG and DXF) 3D AutoCad (DWG and DXF) Wavefront 3D (OBJ) SketchUp (SKP) 2020 Design Catalog Chief Architect 3D Library

Guides

Select Option
Select Option Installation Guide

Specification Sheet

Specification Sheet

Watch Installation Video

Specifications

  • Single bowl
  • Users: 1
  • Culinary Tools included: Five
  • DryDock® Tool included: One
  • Galley BarTap® recommended: One
  • Outside dimensions: 39 1/2” x 19 1/2” x 2 1/16”
  • Countertop cutout: 38 1/2” x 18”
  • Minimum cabinet size: 42” or 107cm
  • Minimum clearance required for DryDock® below countertop: 2”
  • DryDock® location: Drain side (S)

Construction

  • 16GA 316L stainless steel indoor/outdoor
  • SilentArmor™ sound reduction technology
  • Angel finish
  • Three tier design
  • Star™ groove pattern
  • Reversible side drain
  • Drain cover included
  • Limited Lifetime Warranty
  • Made in the USA
  • ASME A112.19.3/CSA B45.4 certified
  • cUPC™ Certified

Materials & Finishes

Quartered White Oak
  • 3/4” Natural Material
  • Traditional solid wood finish
  • Hand-selected White Oak
  • Gentle on knives
  • Sanitary, dense, non-porous
  • Care for with citrine®
  • Eco-friendly
American Black Walnut
  • 3/4” Natural Material
  • Classic solid wood finish
  • Hand-selected Walnut
  • Gentle on knives
  • Sanitary, dense, non-porous
  • Care for with citrine®
  • Eco-friendly

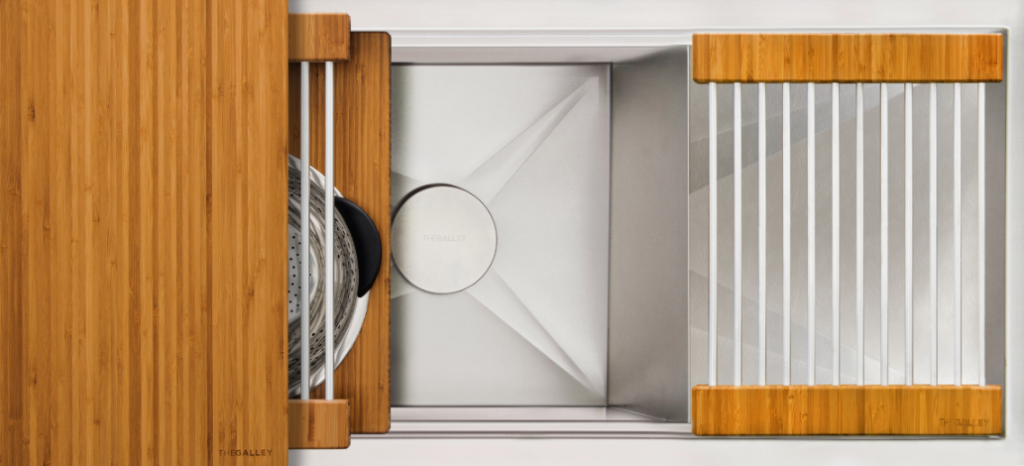

Natural Golden Bamboo

Natural Golden Bamboo

Upper Tier Drying Rack & Utensil Caddy

  • 3/4” Natural Material
  • Traditional solid wood finish
  • Hand-selected Bamboo
  • Gentle on knives
  • Sanitary, dense, non-porous
  • Care for with citrine®
  • Eco-friendly

Exclusive Gray Resin+

Lower Tier Wash Bowl & Wash Caddy

  • Transitional Gray finish
  • BPA/BPS-free
  • NSF certified
  • Dishwasher safe
  • Shatter resistant
  • Sanitary, non-porous
  • Heat & chemical resistant
  • Indoor/Outdoor, UV rated

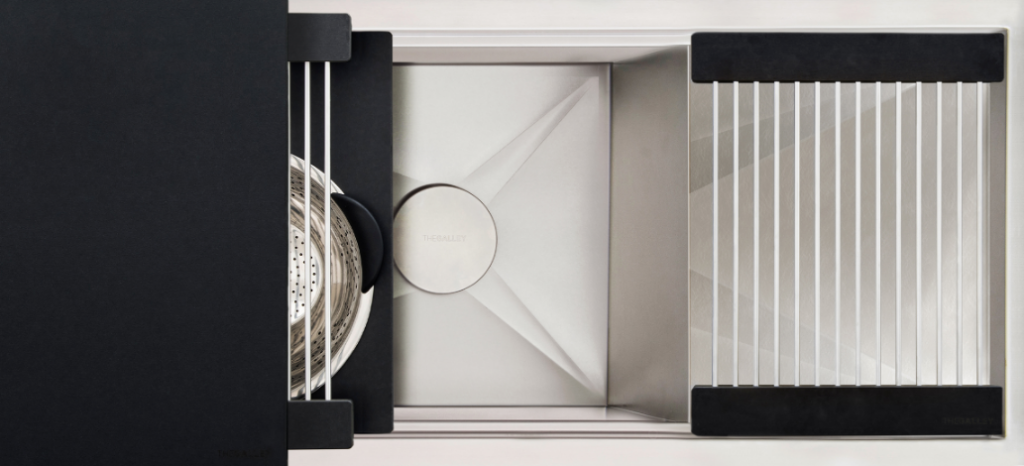

Graphite Wood Composite
  • 1/2” High Performance Material
  • Modern, off-black, matte finish
  • Gentle on knives
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 350°F
  • Eco-friendly
  • Indoor/Outdoor, UV rated
  • Write on with soapstone chalk!

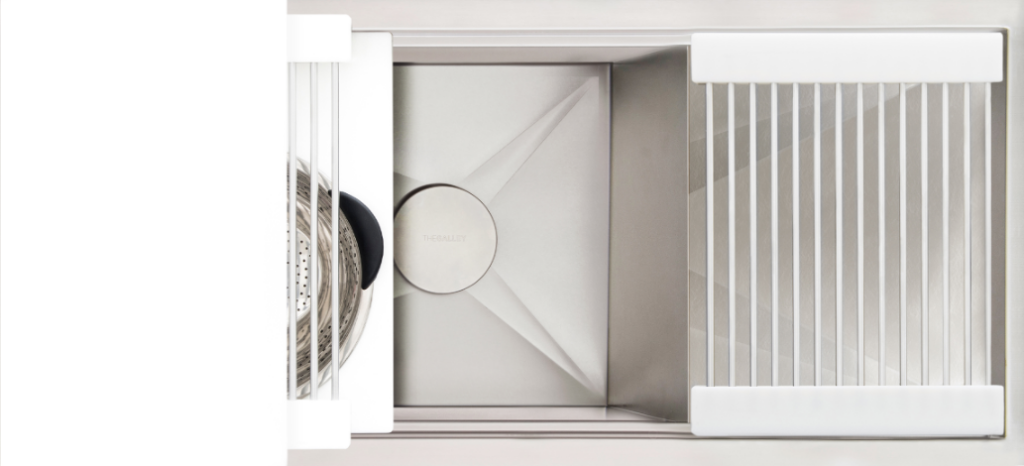

Designer White Resin
  • 5/8” Material
  • Transitional White and Gray finishes
  • Gentle on knives
  • Commercial grade
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 212°F
  • Indoor/Outdoor, UV rated
  • Color coded labeling available

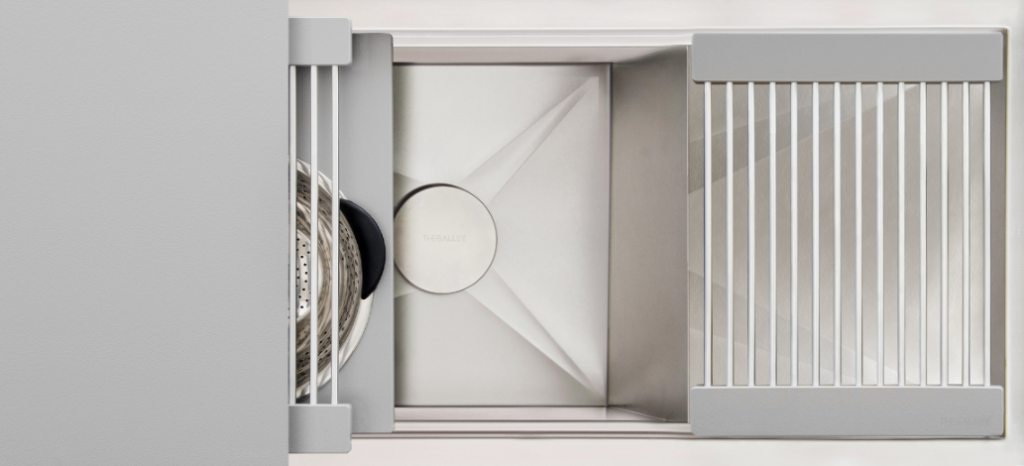

Exclusive Gray Resin
  • 5/8” Material
  • Transitional White and Gray finishes
  • Gentle on knives
  • Commercial grade
  • Sanitary, non-porous, NSF certified
  • Dishwasher safe
  • Heat resistant up to 212°F
  • Indoor/Outdoor, UV rated
  • Color coded labeling available
